Injection molding, from prototype to production
As a full-service supplier, we simplify the manufacturing process of prototypes and ongoing production parts by eliminating the need to coordinate multiple suppliers, saving you time and money. Our experience in advanced manufacturing in injection molding (IM) enables us to recommend ideal solutions for every stage of your product development cycle.
RCT MFG has a manufacturing facility in China that manufactures molds using high-grade P20 steel or harder steel, ensuring top mold quality and adhering to Class 103 to 105 mold classification standards. Our project engineering and production coordination team in Shenzhen, China manage all projects as well as provide hands-on supervision.
Our complementary DFM services to optimize IM parts without compromising design integrity, coupled with our ability to handle insert molding and overmolding, set RCT MFG apart as the preferred partner for your project.
Our Injection Moulding Capabilities
RCT MFG takes on prototype and production injection moulding, we can support low volume with no minimum order quantity through to mass production and ongoing call-off orders in line with your requirements. We take on challenging complex jobs, be it complex part geometry, specialist materials, extremely tight tolerances or specialist finishing. We have earned our reputation amongst the worlds leading companies, working on the very latest of technologies and delivering over 12 million injection moulded components and counting.
Insert injection molding

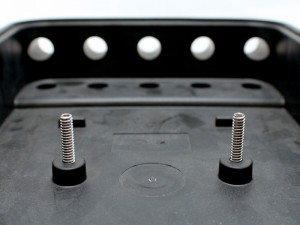

Insert moulding consists of injection moulding around a metal or plastic insert. Inserts are used to create strong, metal, re-usable threads. RCT MFG offers insert moulding and can provide inserts or work with free-issued inserts or specified inserts as you require.

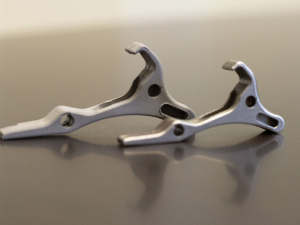

Metal injection molding
Metal injection molding is a process very similar to plastic injection molding in which molten metal is injected into a cast and solidified to create a metal part. The difference with metal injection molding is that it requires post-processing including debinding and sintering. Metal injection molding is used to create small and intricate metal parts of around 1–100 grams.

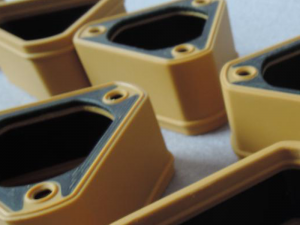

Overmolding
are two-part injectionmolding processes whereone material is overlaidonto a second substratepart or metal insert tocreate a singlecomponent.
Silicone rubber molding

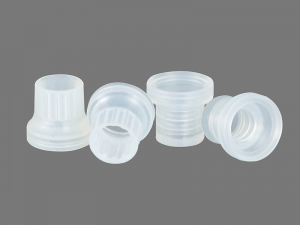

Soft or flexible materials produced in batches or production runs. Shores from 20 - 90 (A).
Materials Options For Injection Molding Services

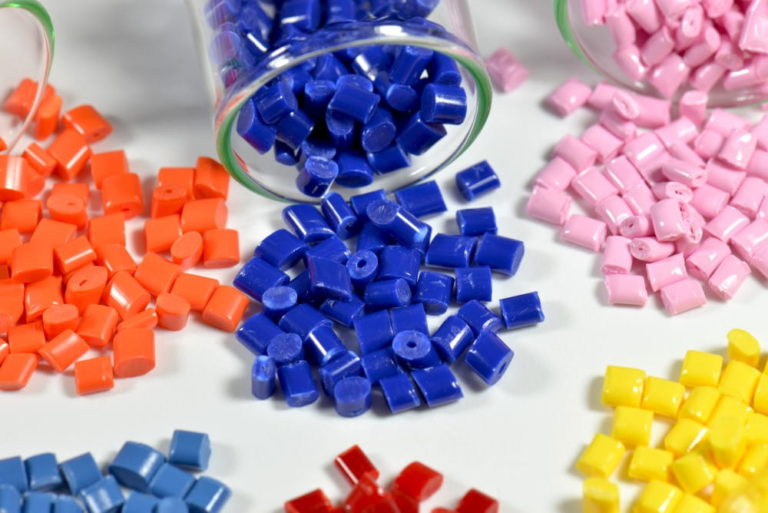

We can process numerous plastics and polymers. We have in-house capacity of a large collection of different injection molding materials. That includes PPS, PP, POM, ABS, C-GF, HDPE, LDPE, PBT, TPV, PC, POE, PMMA, PA66, PA-GF, PS-PPE, TPE, and TPU. We can process customers provided materials too.
Why Choose Our Service
| Data Item | Description | Data Item | Description |
|---|---|---|---|
|
Maximum Part Dimensions:
|
1600mm x 1400mm x 500mm
|
Minimum Part Dimensions:
|
1mm x 1mm x 5mm
|
|
Range of Materials Used:
|
Over 200 types, including modified plastic materials
|
Injection Mold Lead Time:
|
The fastest delivery time is one week
|
|
Injection Molding Cycle:
|
20 seconds for ordinary structural parts
|
Tooling and injection molding department:
|
More than 130 employees in their respective roles
|
Rapid turnaround
We have developed proprietary technology and processes that allow you to receive Injection Moulded parts in as little as 8 days. We’re committed to reducing friction at every stage, ensuring you are informed at every stage of production.
Design for Manufacturing (DfM)
We offer a 1 to 1 experience wih an injection moulding project manager with over 25 years experience. This ensures you get only the best advice and support throughout all stages of production from Tooling design, Injection points and surface finishing through to packaging recommendations. Expect nothing less than affordable and exceptional service.
Complex geometry
All of our partners’ Injection Moulding technologies allow you to design and produce with high levels of complexity. We offer medium and fine tolerances down to +/- 0.005mm for production and provide T1 samples for you to approve.
Catering to a wide range of industries
From consumer, medical and energy products to electronics and automotive goods, we’re proud to deliver production grade injection moulded parts for any and every industry.
Customized Quotes for Your Injection Molding Needs
At RCT MFG, we prioritize your unique needs, offering tailored quotes based on your specific requirements. Unlike competitors, our Design for Manufacturing (DFM) approach adheres to industry standards rather than solely relying on our established norms, ensuring precision and adaptability. This means online quoting is not sufficient and a discussion with our experts is the best way to make sure your project is executed correctly.
To obtain a quote, simply fill out the tooling form on our website, and our team will promptly reach out to schedule a meeting. We look forward to discussing your project in detail and providing a comprehensive solution that meets your expectations.

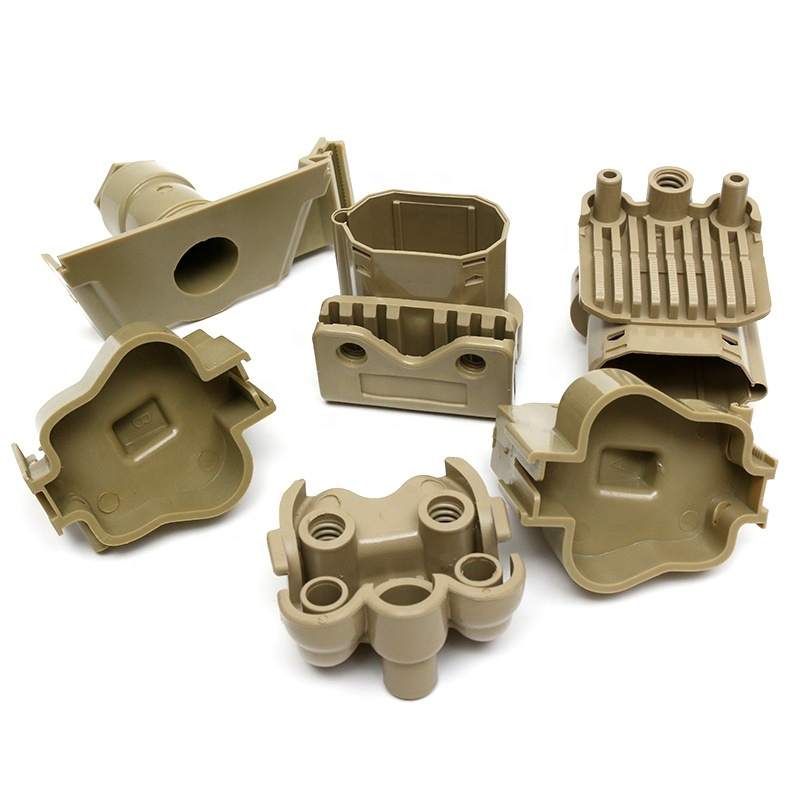

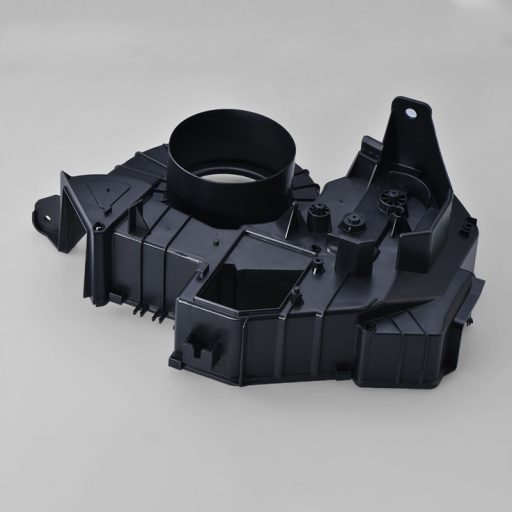

Injection Molding Cases
Experience the capabilities of our plastic injection molding service firsthand through our comprehensive case studies.
The Plastic Injection Molding Process
Plastic injection molding is the process of filling a mold tool with liquid plastic resin under great pressure. The tool may comprise a single cavity or hundreds of cavities in order to make indefinite numbers of parts. Once the mold tools have been carefully designed and manufactured, the molding process consists of the following basic steps:
- Step 1 – The plastic resin comes in raw pellets. These are dried to the right moisture content, and then if necessary they can be blended with pigments or master batch colorants to create the correct color for the design.
- Step 2 – The dried pellets are poured into the hopper of the molding machine. A reciprocating screw inside the barrel of the machine is used to transport these pellets towards the mold while at the same time heating them.
- Step 3 – Within the barrel, the pellets are mixed and heated until fully molten, forming the liquid resin.
- Step 4 – The heated mold closes automatically and resin, under great pressure, is injected through a gate and into the mold cavity.
- Step 5 – The mold is cooled in a short amount of time to solidify the part inside.
- Step 6 – The mold opens and the part is ejected to begin a new cycle.
Different Surface Finishing Options
With various surface finishing options, RCT MFG can make your injection molded products look and work better. Different finishing methods can be chosen for different needs. Below are some of the techniques we use to refine your injection molded parts:
Bead Blasting
Bead blasting is a way in which injection molded parts are cleaned and refined. It uses high-pressure glass or steel beads to blast the surface into a uniform, matte finish. It's a good method if you want to look uniform and professional.
Pad Printing
The multi-functional pad printing process is excellent for applying company logos and brand names, as well as all kinds of decorative designs, to the surface of injection molded products. This is a good choice if you're looking to customize your own personalization and increase the attractiveness of your parts.
Etching
To raise the roughness of injection molded parts, our surface etching method is used. By chemical or physical means, we can create texture and finish that meets your needs.
Laser Finishing
Injection molded parts can undergo laser surface treatment. This is a very exacting thermal process. It engraves fine lines and pictures, firm company taglines or little logos with great precision. It can heat up to several hundred degrees Celsius by absorbing the light on its surface layer.

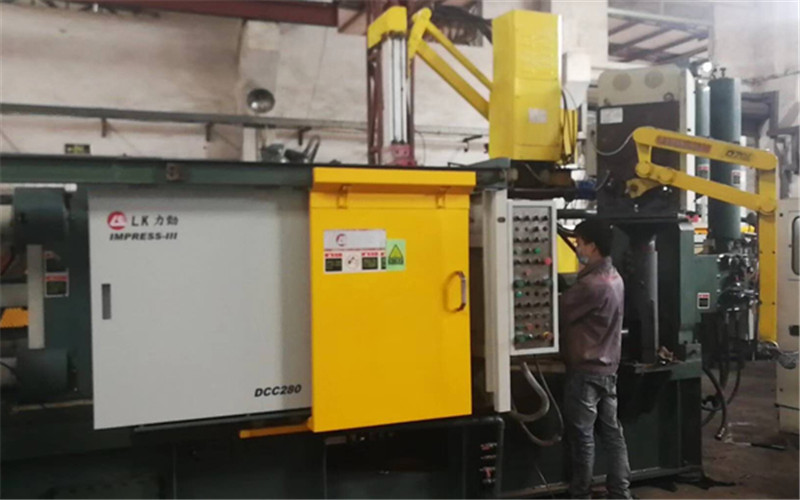

In-house production and quality assurance
RCT MFG offers injection molding services at multiple locations, all capable of fully automated assembly for the highest quality and consistency. Our state-of-the-art equipment includes injection molding machines with clamping forces ranging from 30 tons to 800 tons, including multiple 2-component and 3-component injection molding machines. These facilities also provide rapid repair, service and modification of on-site tooling, ensuring continued availability of production molds. We have production facilities specializing in CAD, mold making, tool repair and maintenance, prototyping, injection molding, testing, secondary operations (assembly, printing, painting and sterilization), logistics, shipping, and in-house tool development.

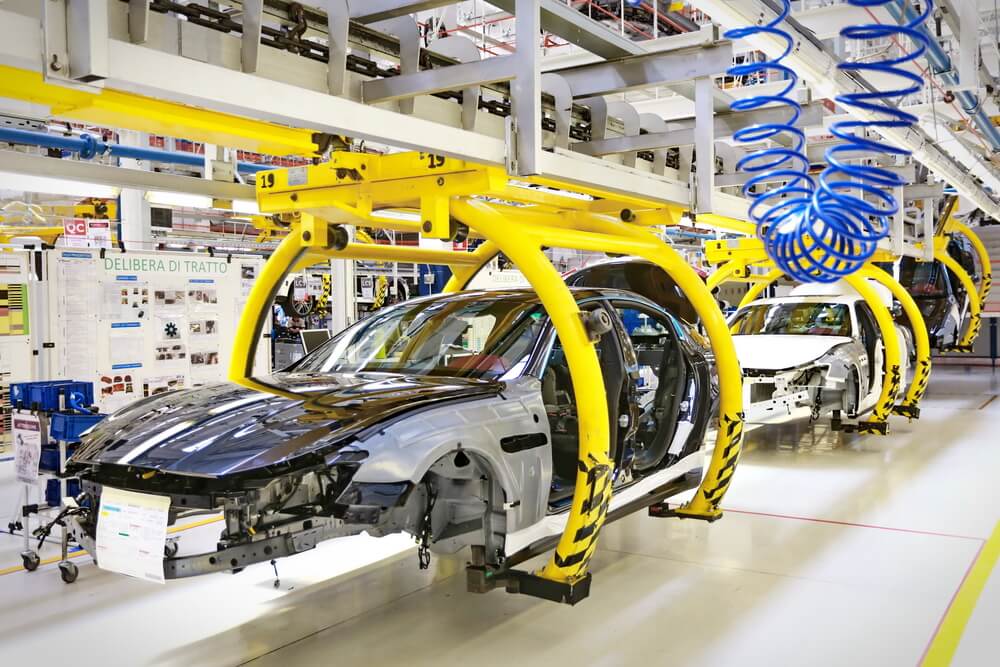

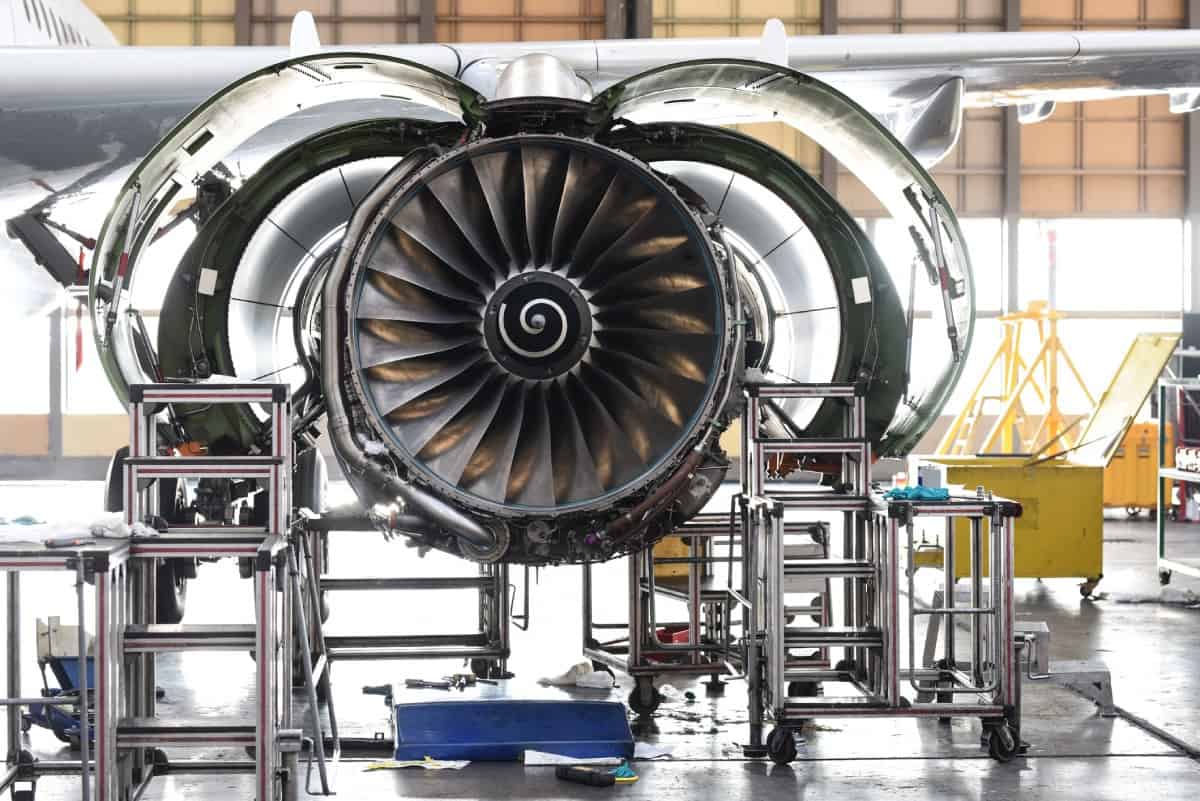

Industrial Application Of Injection Molding
Due to its manufacturing friendly properties, injection molding is being harnessed in many sectors in the world. It is employed in almost every industry in one or the other way.
Request Your Free Injection Molding Quote Today
After receiving your drawings, our engineers will analyze your custom plastic injection molding parts right away. We actively work with you to clarify all details before providing a quote that is both economical and accurate.
